Type

Frame size and Spring size

Working Range

HS Horizontal type
HD Horizontal type
VS Vertical type
VD Vertical type
VIS Vertical inverted type
VID Vertical inverted type
HBM Horizontal base mounted
HBMCS Horizontal base mounted compression seat
VBM Vertical base mounted
VBMCS Vertical base mounted compression seat
VIBM Vertical inverted base mounted
Vertical inverted tandem, VIT are available on request.

C5 –17
FRAME SIZE C5
SPRING SIZE 17

Travel up to 750mm as standard

Type

Frame size and Spring size

Working Range

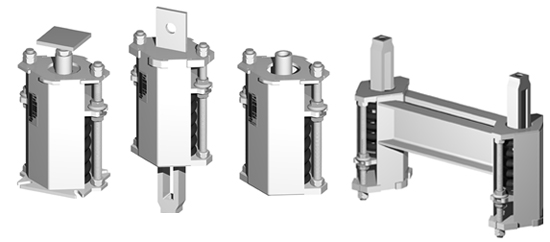

TS1, TS2, TS3 Top Suspended
TA Top Adjustable
ES Extended Support
DS Double Support
BM1, BM2, BM3, BM4 Base Mounted VIT are available on request.

V1 1.38”V4 8.27”

V2 2.76”V5 11.03”

V3 5.52”

166 possible spring sizes including hot load and cold load condition

V1 - 35mm

V2 - 70mm

V3 - 140mm

V4 - 210mm

V5 - 280mm
