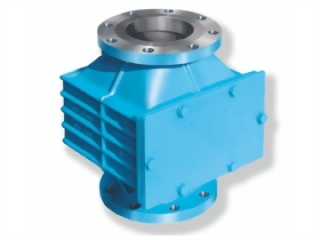

Main Features :
The flame arrester element consists in crimped metal sheets; the ignited vapour passing through the flame arrester are cooled, and then extinguished by the metal sheet mass. The sheets are contained in a removable bank, except model Dwg. 214/A, for inspection and maintenance actions. The free area through the sheets is about three times the area of the pipe. The sheets must be kept clean to prevent loss of flame arrester efficiency.
Materials :
-Body : Cast Aluminium, AISI 304 or...

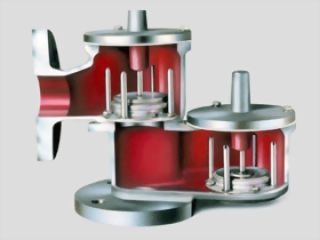

Main Features :
-Replaceable seats.
-Antifreezing pallets; the drips around the pallet avoids condensate collecting around the seat.
-Pallet guides located above the seat; this arrangement assures a no-jamming guide of the pallet not
affected by contaminant fluids as a dose coupling between pallet and guides is not necessary.
-Bird screen avoids the entering of foreign elements.
-Setting : any setting available, charging the pallet's dead weight load, between ± 20 mm H2O and
± 400 mm H2O. (On ...
