Functions - Tank bottom valve

*tank or reactor bottom outlet valve

*tank bottom control valve

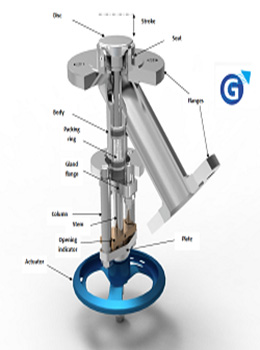

Operating principle - Tank bottom valve

Shutter : Disc or piston with vertical move

Rising disc or Disc lowering into body to open

Process/Atmosphere sealing with stuffing bow (repackable in service)

Body designed for futher flowing

Fabrication - Tank bottom valve

Construction materials : Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Titanium, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel

Construction Methods : Fabricated (Welded), Cast

Uses - Tank bottom valve

Service conditions : High pressure, High temperature, Low temperature, Abrasion, Corrosion, Vacuum

Types of fluids : Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity fluids

Applications : Fine chemicals, Plastics and polymers, General chemicals, Petrochemicals
