Perrin control ball valves

‧Temperature range：
-196℃ to + 800℃
-320℉ to + 1470℉
‧Size range：
DN 1/2” to DN 24”

‧Pressure range：
ANSI Class 150 to Class 2500

‧Materials：
-carbon steel
-stainless steel
-titanium
-Hastelloy
-special materials

Accessories：
‧Actuators
-pneumatic,
-electric,
-hydraulic
‧Heating and cooling jackets
‧Stem extensions
‧Locking and snap-in locking devices

Description

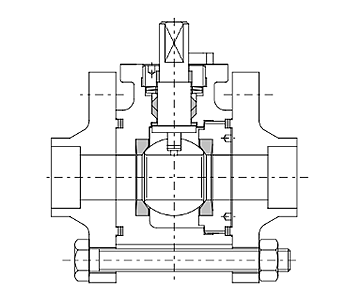

Perrin Series11

Two-Way Ball Valve

Valve Series	11
Description	3-piece Ball Valve
Nominal Size DN	15 - 100
Pressure Nominal ANSI Class	150/300
Temperature	-40°C to +200°C

Perrin Series75

Two-Way Ball Valve

Valve Series	75
Description	2-piece Ball Valve
Nominal Size DN	15 - 150
Pressure Nominal ANSI Class	16 - 40
Temperature	-60°C to +200°C

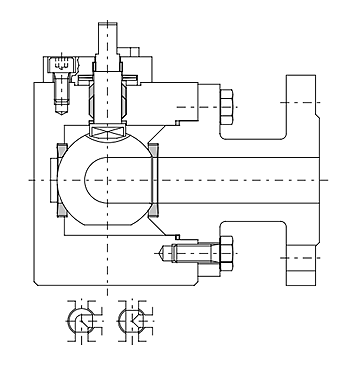

Perrin Series20

90˚Three-Way Ball Valve

Valve Series	20
Description	3-Way Ball Valve L- / T- Port 90°
Nominal Size DN	15 - 100
Pressure Nominal ANSI Class	16 - 40
Temperature	-10°C to +350°C

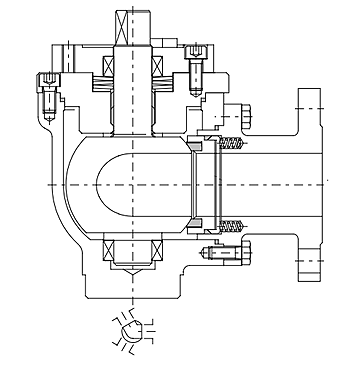

Perrin Series22

120˚Three-Way Ball Valve

Valve Series	22
Description	3-Way Ball Valves L- Port 120°
Nominal Size DN	15 -500
Pressure Nominal ANSI Class	16 - 100
Temperature	-40°C to +400°C

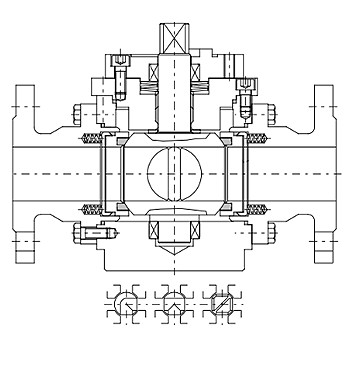

Perrin Series23

90˚Four-Way Ball Valve

Valve Series	23
Description	4-Way Ball Valves X - Port 90°
Nominal Size DN	15 -500
Pressure Nominal ANSI Class	16 - 40
Temperature	-40°C to +550°C

Perrin Series24

Multiway Ball Valves With Vertical In-/outlet

Valve Series	24
Description	Multiway Ball Valves with vertical In-/Outlet
Nominal Size DN	15 -600
Pressure Nominal ANSI Class	16 - 63
Temperature	-40°C to +400°C
