Goodwin Dual Dlate Check Valves

6 Different Body Style：
Wafer(BR)
Flanged(BFR)
Solid Lug(BSR)
Buttweld End(BWR)
Buttweld End with access(BWA)
Hub-End(BHR)
Sizes：
2"-144"(50mm – 3600mm)

Pressure Classes：
ASME 150-2500
API 2000-20000
PN 10-PN 400
JIS 10K & 20K(available on request)

Materials：
Ductile and Ni-Resist© Irons
Carbon Steels; Stainless Steels
Duplex ainless Steels
Aluminium Bronzes
High Nickel Alloys
Titanium

Description

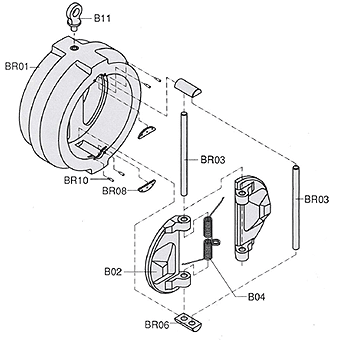

Goodwin TYPE BR-Wafer

VALVE SIZE	FLANGE STANDARD
2" to 24"	ANSI B16.5
26" to 60"	ANSI B16.47 SERIES(MSS SP44)
66" to 144"	AWWA C207 (CLASS E 275 PSI)
Pressure Rating: ANSI 150~2500#；DIN PN10-PN40；JIS 10K-20K

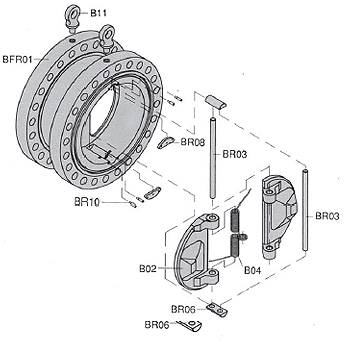

TYPE BFR-Flanged

VALVE SIZE	FLANGE STANDARD
2" to 24"	ANSI B16.5
26" to 60"	ANSI B16.47 SERIES(MSS SP44)
66" to 144"	AWWA C207 (CLASS E 275 PSI)
Pressure Rating: ANSI 150-900#；JIS: 10K-20K

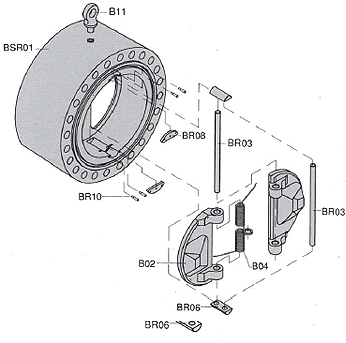

TYPE BSR -Solid Lug

VALVE SIZE	FLANGE STANDARD
2" to 24"	ANSI B16.5
26" to 60"	ANSI B16.47 SERIES(MSS SP44)
66" to 144"	AWWA C207 (CLASS E 275 PSI)
Pressure Rating: AISI 150-2500#

Goodwin Dual Dlate Check Valves
