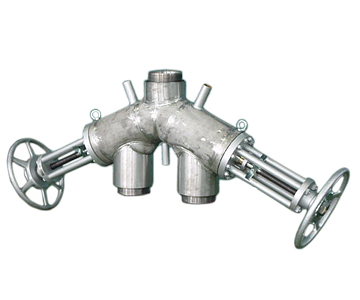

Aska diverter valve incorporates a patented articulated ram type disc with concave head design. It provides a smooth and gentle polymer flow.
As the ram is moved between closed and open positions, it rotates so the tip is properly aligned with the flow path.
‧Dead Space Free (No pocket)
‧3 way ,4 way, 5 way, 6 way,
max 7 way available
‧Vacuum and High pressure service available
‧Drain valves can be incorporated adjacent to seat for complete flushing
‧Butt welded ends(BW), Flange connections or Grayloc(R) connections
‧Manual (with or without Gears), Electric, Pneumatic, Hydraulic operations
‧Disc & stem type for low pressure condition
‧With heating jacket type(Full jacketed, Semi jacketed), Non jacketed (Single) type
